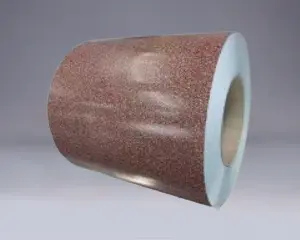

ఫ్లవర్ ప్రింటింగ్ పిపిజిఐ పిపిజిఎల్ స్టీల్ కాయిల్

In the field of building enclosure and industrial protection, the corrosion resistance and mechanical properties of materials directly affect the safety and service life of the project. As a benchmark enterprise in China's color-coated steel industry, Yintu Steel Products has launched two series of color-coated coils, PPGI (galvanized) and PPGL (aluminum-zinc coated). Through the precise mechanical grading of DX51D/DX52D/DX53D, it provides a "corrosion protection + strength" dual protection solution for roof panels, rolling shutters and other scenes.

1. Core advantages of DX51D-DX53D color-coated coils

For corrosive environments and high-frequency use requirements, our products have three core competitive advantages:

Dual anti-corrosion system

PPGI: 85-150g/m² galvanized layer + 5μm epoxy resin primer + 20μm polyester topcoat, salt spray test over 2000 hours

PPGL: 55% aluminum-zinc alloy coating, corrosion resistance is 3 times that of galvanizing, suitable for seaside/industrial areas

Precise mechanical grading

DX51D: yield strength ≥245MPa, elongation ≥26%, suitable for conventional roof panels

DX52D: yield strength ≥275MPa, elongation ≥24%, suitable for large-span structures

DX53D: yield strength ≥300MPa, elongation ≥22%, meet the needs of heavy-duty rolling shutter doors

Intelligent coating process

Japan ABB robot electrostatic coating, film thickness uniformity error <3%

Ultraviolet curing technology, coating adhesion reaches level 0 (ASTM D3359)

II. Four major technological breakthroughs of Yintu steel products

Nano-ceramic modification

Adding silicon carbide nanoparticles, the coating hardness is increased to 2H, and the wear resistance is increased by 40%

Self-cleaning surface

Fluorocarbon topcoat contains TiO₂ photocatalytic components, and rainwater flushing can achieve self-cleaning

Temperature compensation system

Adopting German infrared temperature measurement technology to ensure the consistency of coatings of coils of different specifications

Environmentally friendly production process

Chromium-free passivation technology + water-based coatings, passed ISO 14001 and SGS green certification

III. Development trend of color-coated coil market

1. Driven by demand growth

The global color-coated coil market has an annual compound growth rate of 6.8% (Global Market Insights, 2025)

China's building enclosure field accounts for more than 45%, and the demand for industrial anti-corrosion increases by 8% annually

2. Technology upgrade direction

From single anti-corrosion to "anti-corrosion + wear-resistant + self-cleaning" multifunctional coating

The proportion of high-strength steel applications has increased to 35%, meeting the demand for lightweight

IV. Typical application scenarios

1. Roof system

Acid-resistant roofs for industrial plants, large-span roofs for logistics warehouses

Corrosion-resistant roofs for chemical plants, top surfaces of agricultural greenhouses

2. Rolling shutter system

Automatic rolling shutters for commercial stores, fireproof rolling shutters for industrial plants

Electric doors for underground garages, doors for airport cargo passages

3. Other protective facilities

Sound barriers for highways, protective covers for port machinery

V. Full-process service system

Customized solutions

Full-size customization with thickness of 0.3-1.2mm and width of 600-1250mm

Supports 210 colors of RAL color cards

Quality assurance

Each roll of product comes with: coating thickness test report + film thickness test report + salt spray test report

Triple certification of ISO 9001, ISO 14001 and SGS
